MAG24-13

Category:

Description

Product Overview

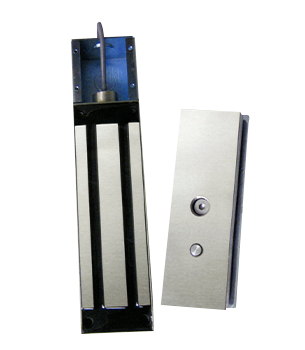

Platinum Mag24-13 is a durable and reliable magnetic lock. It is well suited for any outdoor, or indoor application requiring a magnetic lock. The removable mounting bracket makes installation a breeze. Additionally, the attachment junction box allows for direct connection to conduit and safe place to make electrical connections.

The Mag24-13 comes with a highly competitive 2-year limited warranty, expert technical support, and installation assistance by phone.



Features and benefits: - 1300 lbs holding force - Outdoor/Indoor rated - Removable and weldable mounting bracket - Electrical junction box attached - 24 VDC transformer INCLUDED - Built to last - 2-Year Limited Warranty.

Additional information

Specification

– Holding Force: 1300 lbs- Input Voltage: 12VDC/24VDC
– Current Draw: 480 mA @ 12 VDC, or 240 mA @ 24 VDC
– Dimensions: Magnet: 8.5”L X 1.6”D X 2.5”HArmature Plate: 7.25”L X 0.6”D X 2.4”H
– Weight: Approx. 15 lbs
– working Temperature Range: 14°F to 131°F
